Overview
MHP11 Poclain Hydraulic motors
MHP11 motor max 1401cc, up to 106 kW
High Performance direct drive motor up to 106 kW ideal for wheel motor or tool drive, from 311 to 1401cc, at 450 bar max (max torque 10000 N.m) and high speed reached at 324 rpm with multispeed conception. The modular design ease the use on all demanding application for the most demandable market as construction equipment, material handling, agricultural, environment, mining, on rail, marine, industry...
Get a quote

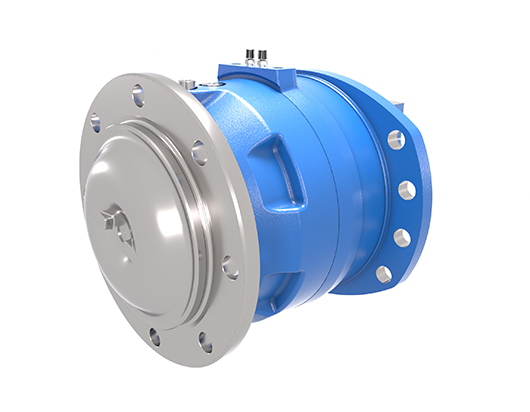

Wheel Motor S17 Brake
Wheel Motor S17 Brake 2
Shaft Motor 1
Shaft Motor 2
Wheel Motor S17 Brake
Wheel Motor S17 Brake 2
Shaft Motor 1
Shaft Motor 2
High Performance direct drive motor up to 106 kW ideal for wheel motor or tool drive, from 311 to 1401cc, at 450 bar max (max torque 10000 N.m) and high speed reached at 324 rpm with multispeed conception. The modular design ease the use on all demanding application for the most demandable market as construction equipment, material handling, agricultural, environment, mining, on rail, marine, industry...
Get a quote
Technical specifications
Max Displacement
-
cc/rev
1401
-
cu.in/rev
85.5
Max Torque
-
Nm
10000
-
lb-ft
7376
Max Pressure
-
Bar
450.00
-
PSI
6527.00
Max Power
-
kW
106
-
HP
142
Max Speed
-
RPM
324
Motor Type
- Wheel Motor checked
- Shaft Motor checked
Brake Type
- Service Brake checked
- Parking Brake checked
- Hydrostatic Boosted Brake checked
