MHD09 Poclain Hydraulic Motors
MHD09 Motor Max. 978cc up to 150kW
Powered by HEVO technologies, the MHD hydraulic motor delivers high efficiency and performance across all operating conditions. It combines optimized oil distribution for reduced losses at high speed, efficient operation in reduced displacement, and full torque capability when needed. Its unique dual displacement architecture also enhances durability by distributing loads more evenly, resulting in improved productivity, reliability, and overall machine performance.
Get a quote

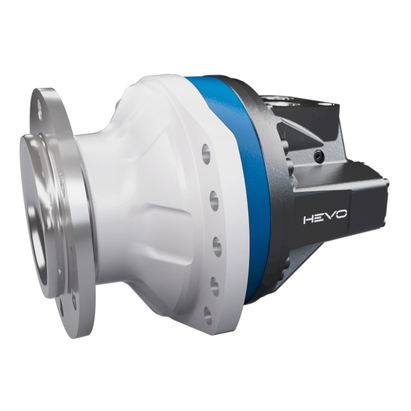

MHD09 Hydraulic Wheel Motor with HEVO DUAL Technologies
MHD09 Hydraulic Hollow Shaft Motor with HEVO DUAL Technologies
MHD09 Hydraulic Motor Hollow Shaft back view
MHD09 Hydraulic Wheel Motor with HEVO DUAL Technologies
MHD09 Hydraulic Hollow Shaft Motor with HEVO DUAL Technologies
MHD09 Hydraulic Motor Hollow Shaft back view
Powered by HEVO technologies, the MHD hydraulic motor delivers high efficiency and performance across all operating conditions. It combines optimized oil distribution for reduced losses at high speed, efficient operation in reduced displacement, and full torque capability when needed. Its unique dual displacement architecture also enhances durability by distributing loads more evenly, resulting in improved productivity, reliability, and overall machine performance.
Get a quote
Technical specifications
Max Displacement
-
cc/rev
978
-
cu.in/rev
59.7
Max Torque
-
Nm
7000
-
lb-ft
5162
Max Pressure
-
Bar
450.00
-
PSI
6527.00
Max Power
-
kW
150
-
HP
201
Max Speed
-
RPM
420
Motor Type
- Wheel Motor checked
- Shaft Motor checked
Brake Type
- Service Brake checked
