Overview

MHP13 Poclain Hydraulic motors

MHP13 motor max 1542cc, up to 158 kW

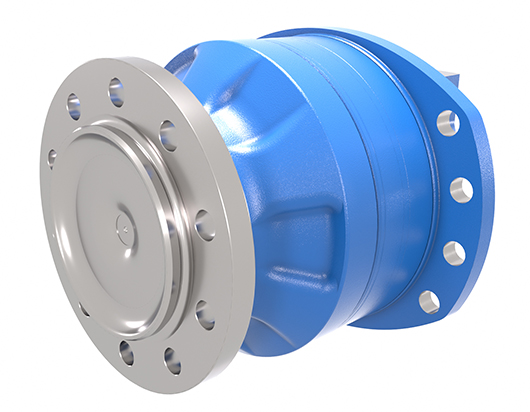

MHP13-17 Wheel Motor 1
Wheel Motor 1
MHP13-17 Wheel Motor 2
Wheel Motor 2
MHP13-17 Wheel Motor P17 Brake Valving Cover Fixation 1
Wheel Motor P17 Brake Valving Cover Fixation 1
MHP13-17 Wheel Motor P17 Brake Valving Cover Fixation 2
Wheel Motor P17 Brake Valving Cover Fixation 2
MHP13-17 Shaft Motor 1
Shaft Motor 1
MHP13-17 Shaft Motor 2
Shaft Motor 2
MHP11 Shaft Motor P17 Brake 1
Shaft Motor P17 Brake 1
MHP13-17 Shaft Motor P17 Brake 2
Shaft Motor P17 Brake 2
MHP13-17 Wheel Motor 1
Wheel Motor 1
MHP13-17 Wheel Motor 2
Wheel Motor 2
MHP13-17 Wheel Motor P17 Brake Valving Cover Fixation 1
Wheel Motor P17 Brake Valving Cover Fixation 1
MHP13-17 Wheel Motor P17 Brake Valving Cover Fixation 2
Wheel Motor P17 Brake Valving Cover Fixation 2
MHP13-17 Shaft Motor 1
Shaft Motor 1
MHP13-17 Shaft Motor 2
Shaft Motor 2
MHP11 Shaft Motor P17 Brake 1
Shaft Motor P17 Brake 1
MHP13-17 Shaft Motor P17 Brake 2
Shaft Motor P17 Brake 2

Technical specifications

Max Displacement
  • cc/rev
    1542
  • cu.in/rev
    94.1
Max Torque
  • Nm
    12258
  • lb-ft
    9041
Max Pressure
  • Bar
    500.00
  • PSI
    7252.00
Max Power
  • kW
    158
  • HP
    212
Max Speed
  • RPM
    548
Motor Type
  • Wheel Motor checked
  • Shaft Motor checked
Brake Type
  • Service Brake checked
  • Parking Brake checked
  • Hydrostatic Boosted Brake checked
background-bue-grey4

Download

MHP High Performance

file name

Commercial documentation

file name

System technical documentation

file name
